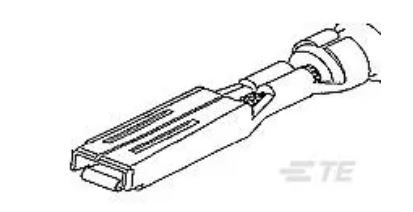

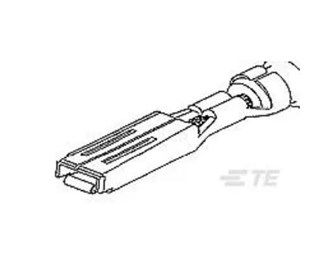

TE 282403-1

Varianter

Minsta antal 4000 st

Tilgjengelighet webshop 8000 st

Levering 1-2 dager

0,25 NOK 0,85 NOK Listpris eks. mva

Gå til vare

Agency/Standard:	LV214
Compatible With Wire Base Material:	Copper
Contact Fabrication:	Stamped & Formed
Contact Size:	1.5mm
Crimp Type:	F-Crimp
Customer Preferred Contact:	No
Interface Plating:	Tin (Sn)
Mating Tab Thickness:	.031 in, 8 mm
Mating Tab Width:	.059 in, 1.5 mm
Operating Temperature (Max):	100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 80 °C, 85 °C, 90 °C, 176 °F, 185 °F
Operating Temperature Range:	-40 – 125 °C, -40 – 257 °F
Packaging Method:	Reel
Packaging Quantity:	4000
Primary Locking Feature:	Locking Lance
Product Terminates To:	Wire
Receptacle Style:	180°
Sealable:	Yes
Terminal Seal Type:	Single Wire Seal (SWS)
Terminal Transmits:	0 – 24 A (Low Power)
Terminal Type:	Receptacle
Termination Method to Wire & Cable:	Crimp
Typical Current Rating:	6 A
Wire Contact Termination Area Plating Material:	Tin
Wire Size:	22 – 20 AWG, .35 – .5 mm²
Wire Size Search:	20 AWG, 21 AWG, 22 AWG, .35 mm², .4 mm², .5 mm²
